With thermal transfer coding equipment, coding can be carried out on materials such as paper, aluminum, plastic as well as on laminates or adhesive labels, allowing printing on the packaging of the products already in the production line.
Thermal Transfer Encoding (TTO Encoders)
SAVEMA TTO (Thermal Transfer Overpack) Encoders
TTO Savema encoders

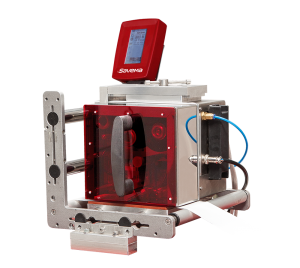

SVM 32
Models: SVM 32-50 I SVM 32 C
Main features
- Patented robust industrial design that offers high performance without any maintenance.
- Printing area 32 × 50 mm for intermittent and 32 × 125 mm for continuous
- Tape capacity 600 m
- 300 dpi print quality (12 pixels / mm)
- Print speed up to 450mm / s intermittent and 600mm / s continuous
- USB can be used to move messages and settings between printers, backup and restore printer messages and settings
- Large format storage capacity in the printer's internal memory.

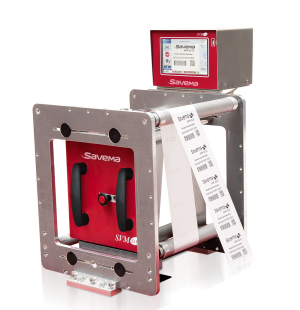

SVM 53
Models: SVM 53-70 I SVM 53 C
Main features
- Patented robust industrial design that offers high performance without any maintenance.
- Printing area 53 × 70 mm for intermittent and 53 × 125 mm for continuous
- Tape capacity 600 m
- 300 dpi print quality (12 pixels / mm)
- Print speed up to 450mm / s intermittent and 700mm / s continuous
- USB can be used to move messages and settings between printers, backup and restore printer messages and settings
- Large format storage capacity in the printer's internal memory.

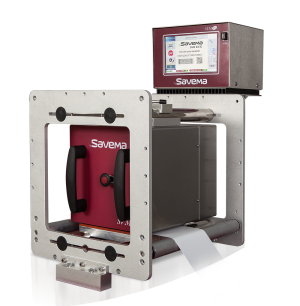

SVM 107
Models: SVM 107-75 I SVM 107 C
Main features
- Patented robust industrial design that offers high performance without any maintenance.
- Printing area 107 × 75 mm for intermittent and 107 × 125 mm for continuous
- Tape capacity 600 m
- 300 dpi print quality (12 pixels / mm)
- Print speed up to 400mm / s intermittent and 450mm / s continuous
- USB can be used to move messages and settings between printers, backup and restore printer messages and settings
- Large format storage capacity in the printer's internal memory.
specs
32-50 I |
32 C |
53-50 I |
53-70 I |
53 C |
107-75 I |
107 C |
|
| Area of impression | W: 32mm
L: 50mm |
W: 32mm
L: 125mm |
W: 53mm
L: 50mm |
W: 53mm
L: 70mm |
W: 53mm
L: 125mm |
W: 107mm
L: 75mm (125 opt) |
W: 107mm
L: 125mm |
| Resolution | 12 ppm
300 dpi |
||||||
| Speed | 400 mm / s | 450 mm / s | 650 mm / s | 450 mm / s | 650 mm / s | ||
| Production | 300 pr / min | 400 pr / min | 400 pr / min | 350 pr / m | 500 pr / m | 200 pr / m | 250 pr / m |
| Ribbon | 600 m | ||||||
| Feeding | 110/220 V 50/60 Hz | ||||||
| Air | Min 1 bar - max 4 bar | ||||||
| Weight | 5.6 kg | 9.4 Kg | 11.6 Kg | ||||
| Dimensions | 175 H x 190mm W x 200mm D | 180 H x 215mm W x 210mm D | 210 H x 210mm W x 255mm D | ||||
| Control Panel | 4.3 »Touch | 7 ″ Touch | |||||
| Departures | Error, image ready, power on, print / min, etc. | ||||||
| Fields | Date and real time, text, 2D barcode, Logos, counters, Monetary, Figures, etc. | ||||||
| Codes | 1D (EAN-13, EAN-8, CODE 128, CODE 39, ITF 2of5, ITF 14, CODABAR, UPC-A, C
2D: Datamatrix, QR, PDF 417, Axtec, Semacode, Macro PDF 417 |
||||||
| Communications | RS-232 (PC), LAN, USB
Multilanguage support standard (12) |
||||||
| software | SAYASIS LAbel Program | ||||||
