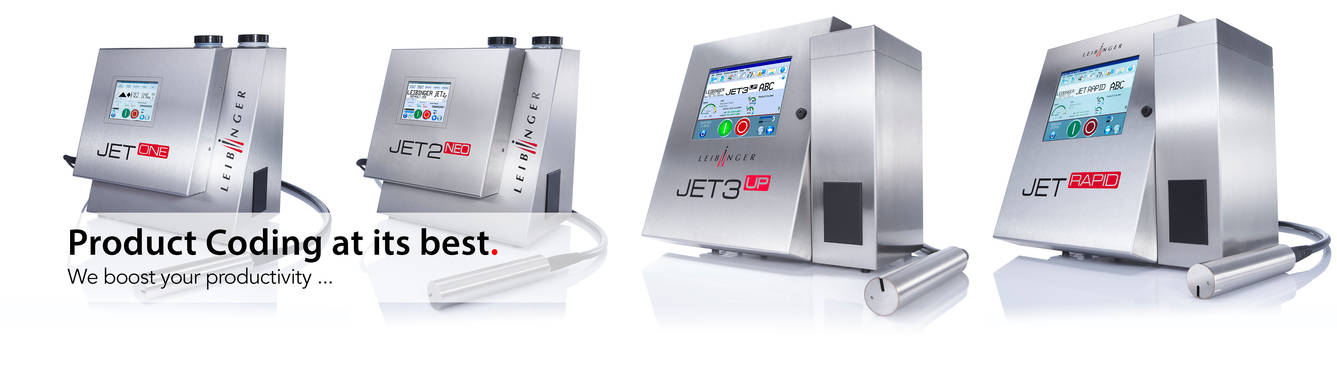

The Jet One prints on plastic, glass, wood, metal, ceramic, electronic components, cards and paper, without contact and with fixed or variable data such as dates, batches, serial numbers or even graphics in any position and address (at right, upside down, mirrored, rotated) on flat, concave, rough, molded surfaces, nothing is impossible for the JetOne
Equipped with its unique SEALTRONIC head closure system, the JetOne is ready to print in just seconds and always with a clean print. This unique technology in the world ensures complete protection against ink drips even after long downtime. Daily maintenance times and cycles are drastically reduced, and lost productivity related to misprints will be a thing of the past.
Its self-sufficient hydraulic system does not require any external compressed air. The printer is in charge of activating the pressure pump at regular intervals to maintain a constant pressure throughout the circuit, which now means an amount of energy and solvent.
The wide variety of interfaces available allows you to integrate the JetOne at any level of integration required: from a simple connection to full integration. And its compact stainless steel head adapts to your system in any position.
Advantages of the JetOne
Prints up to two lines in a 5x5 up to 16x16 matrix
Prevents ink spillage thanks to its exclusive SEALTRONIC system
Starts in seconds with the push of a button
Windows-based operating system
Color touch screen
Many tools as well as a job editor
Diagnostics and status screen with help menus
Its high performance makes the LEIBINGER JET2neo the ideal printer for all daily marking tasks on different surfaces and products. Made with the highest quality material and sophisticated technologies guarantee its durability. The JET2neo prints fixed and variable data such as texts, dates, barcodes, serial numbers and graphics without contact during production and with fast drying inks. The JET2neo is the ideal marking system for all your daily tasks.
SEALTRONIC system
Equipped with its unique SEALTRONIC head closure system, the JetOne is ready to print in just seconds and always with a clean print. This unique technology in the world ensures complete protection against ink drips even after long downtime. Daily maintenance times and cycles are drastically reduced, and lost productivity related to misprints will be a thing of the past.
Its compact design makes the JET2neo easily integrable in any environment. Its print head was designed to be mounted on almost any production line
The operating system implemented in the Jet2Neo makes its operation easy and straightforward. The user interacts with a window-based OS with a full color touch screen. They can create print jobs instantly and easily.
Wide selection of inks
Various colors of pigment inks available
Quick drying inks
Inks based on MEK, cetane free and alcohol based.
Temperature resistant inks
Security inks, inks with color variation, adhesive, fluorescent inks, resistant to sterilization and alcohol. Inks suitable for food packaging.
PVC inks (no transfer)
Food grade inks
Washable inks
Custom made inks
Advantages of the Jet2Neo
Automated «Sealtronic» nozzle seal-ink no longer dries out
Starts in seconds at the push of a button
Windows-based operating system
Color TFT-Touch display with large operating elements and various menu languages
Many functions, including a graphics editor
Two macro buttons that can be assigned individually and enable quick access to certain areas
Resolution up to 24 drops
Prints up to 3 lines in a 7 × 5 matrix
> Available versions of the Jet2Neo
JET2neoS:
Quick version of the Jet2Neo for standard applications.
Capable of doing 2,666 points per second.
Print up to 3 lines in different fonts, languages and colors.
JET2neoD:
Version of the Jet2Neo specifically designed for dirty and dusty environments
Dust and particles are kept out of the printer
thanks to its completely closed back panel
and positive air and special head design
The LEIBINGER JET3up industrial printer is the right solution for all your marking projects thanks to its wide variety of functions. Glass, film, cards, cables, wood, plastics, metal and steel,… are marked without contact with the Jet3Up. Specialty inks with speeds up to 19 m / s are available on a wide variety of surfaces and shapes with both fixed and variable data.
The right functionality for each application Easily readable font types Height of the fonts: 5-32 drops Up to 5-line texts can be printed Prints all major barcodes and DataMatrix codes (ECC200, GS1, EAN / ECC) Graphics and font editor BatchJob function: A list of predefined jobs is printed in succession. A separate PrintGo signal triggers each individual job. Repetitions of individual print jobs can be easily entered into the list. JobSelect, a function for external job selection: You can select a certain job from a predefined list using external signals (PLC). The job is printed with the next PrintGo signal. You can control up to 1024 jobs using 10 digital input signals. Shoot and print function: Instead of selecting a job number manually, simply load the corresponding print job using a handheld scanner. There are a total of over 800 functions in every LEIBINGER JET3up industrial inkjet printer! More
Available options
Nozzle size: 50 µm, 60 µm, 70 µm
Umbilical, length: 3 m, 6 m or 10 m
Umbilical, outlet: Straight, 45 ° or 90 ° angle
Head pressurization: Internal or external
EcoSolv, solvent recycling system
Electronic fan cabinet for extremely warm environments
Additional interfaces for activating additional printers
Precision print head
Special print head with side umbilical outlet
Advantages of the Jet3Neo
The automated «Sealtronic» nozzle seal in the LEIBINGER industrial inkjet printers ensures that ink does not dry out, even during lengthy breaks in production
Windows-based touchscreen display for convenient operation
Interfaces such as Ethernet and I / O signals make integration into a production machine easy
Height of the fonts: 5-32 drops
Up to 5-line texts can be printed
Over 800 user-friendly functions
Non-contact marking at up to 10 m / s
2-year warranty
All software updates included
Fair, transparent maintenance
Easy integration thanks to a wide variety of interfaces
Available versions of the Jet3Up
JET3UpPro:
Version with IP65 protection
JET3UpMI:
Specific version for printing on small surfaces with microcharacters
Micro printing up to 0.7 mm
Precise coding of small products
JET3UpPI:
Specially designed for printing on high contrast plastics and cables
Capable of handling highly pigmented inks (white, yellow, blue, orange)
JET3UpEP EggCoding:
Special version for integration in MOBA and Diamond system (Moba Group) brand egg graders
High quality and inks suitable for food contact
Capable of printing up to 252,000 eggs per hour (using 8 lines and 8 printers)
The universal high-speed printer
Up to 30% faster non-impact marking & coding
Printing with up to 800 m / min with the option Speed Plu
Available versions of the JetRapid
JETRapid Wire :
Special version for cables up to 1000 m / min
JETRapid Wire PI:
Special version for cables and capable of handling inks with high pigmentation up to 700 m / min
